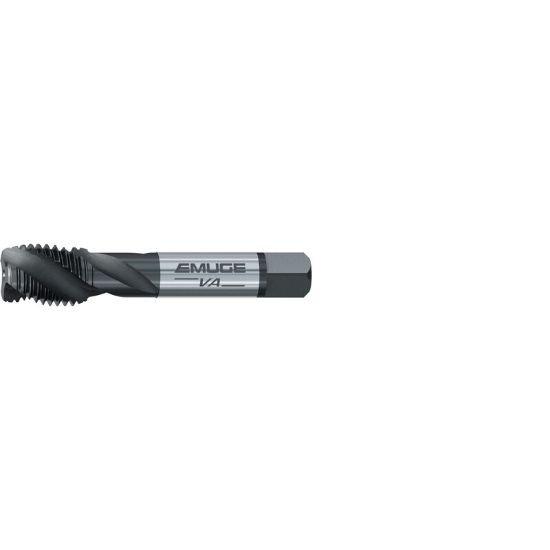

Picture of Emuge AU503200.5006 Tap Mod Bottom No.8-32.00TPI 2B NC/UNC ANSI/ANSI HSSE Oxide + TiN

Emuge AU503200.5006 Tap Mod Bottom No.8-32.00TPI 2B NC/UNC ANSI/ANSI HSSE Oxide + TiN

Part Number: EMUAU503200.5006 ISO: AU503200.5006

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1160007
Vendor: Sussex Tool and Supply
$41.33
EMUGE AU503200.5006 No.8x32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Oxide + TiN 2B NC/UNC Steel TiN is a clear step up from even high quality oxide coating. Its around 20% harder, and is significantly smoother and resistant to BUE
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <42HRC Steel
Coating Oxide + TiN
Overall Length 2.1250 53.98MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 32.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.8
Thread Limit 2B
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Square 0.1310
Tap Chamfer 2.0P-3.0P
