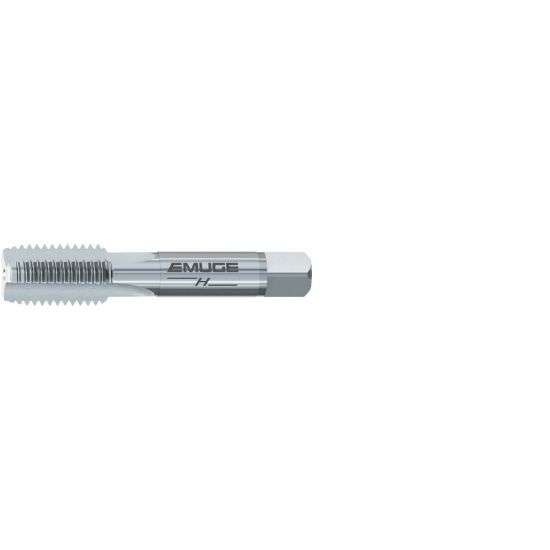

EMUGE AU110501.0050 Tap M5-0.80MM Bottoming Metric ANSI/ANSI 1.5P-2.0P No Coolant HSSE Nitride

ISO: AU110501.0050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU110501.0050
Delivery date: 3-5 days
$41.75
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#10, Material#10I, Material#10T
Additional Key Information 1 Tapping
Application Bottom Tapping, Cut Tapping, Tapping, Blind Hole Tapping
Performance Rating High Performance
Coating Nitride
Shipping State Massachusetts
Package Size 1
Sold by Pieces 1
Uncategorized
Made In USA No
Dimensional Specifications
Thread Size M5
Dimension Standard ANSI/ANSI
Overall Len 2.3740 60.30MM
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tool Material Steel
Thread Pitch 0.80MM
Flute Direction STRAIGHT
Machine Side TAP0.152x0.194
Machine Side Connection Type Tap Collet
Tap Style Cut Straight Flute
Length Type Standard
Tap Type Bottoming
Thread Limit 6H
Shank/Pilot Dia 0.1940 4.93MM
Tap Chamfer 1.5P-2.0P
Thread Type Metric
Cut Rating High Temp, Inconel, Titanium
Tap Square 0.1520
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
Energy Yes
