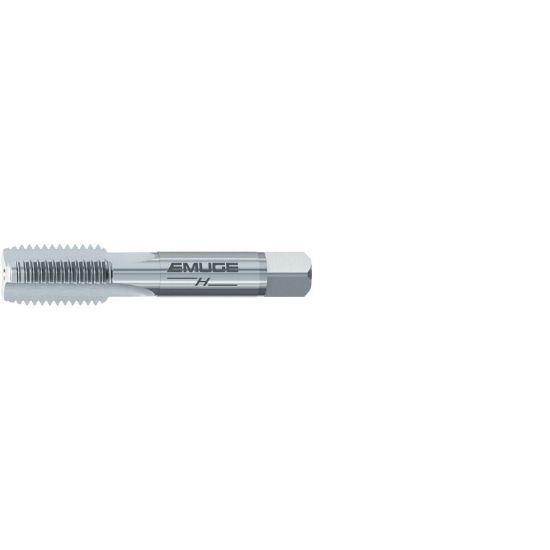

EMUGE AU100501.5004 Tap Mod Bottom No.5-40.00TPI 2B NC/UNC ANSI/ANSI No Coolant HSSE Nitride

ISO: AU100501.5004

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUAU100501.5004
Delivery date: 3-5 days
$42.15
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Application Blind Hole Tapping, Mod Bottom Tapping, Cut Tapping, Tapping
Material # Material#10I, Material#10T, Material#10
Coating Nitride
Shipping State Massachusetts
Package Size 1
Additional Key Information 1 Tapping
Performance Rating High Performance
Uncategorized
Made In USA No
Dimensional Specifications
Flutes/Inserts 3
Drill Range 0.0988 2.51MM - 0.1047 2.66MM
Flute Direction STRAIGHT
Machine Side TAP0.110x0.140
Shank/Pilot Dia 0.1410 3.58MM
Thread Pitch 40.00TPI
Thread Limit 2B
Cut Rating High Temp, Inconel, Titanium
Overall Len 1.9370 49.20MM
Tool Material Steel
Tap Square 0.1100
Thread Size No.5
Thread Type NC/UNC
Length Type Standard
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Style Cut Straight Flute
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Mold Yes
Energy Yes
