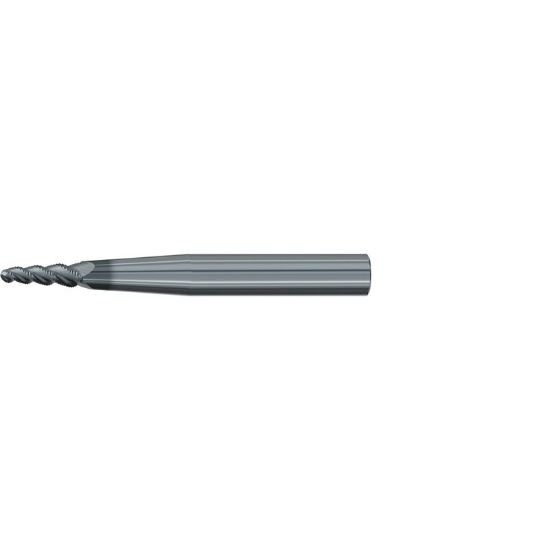

Picture of Emuge 3546L.04020A Dia 4mm SH 0.4724 LOC 1.1811 OAL4.7244 End Mill Taper Flute Carbide AlCrN Single End Ball NoseBall Turbine Program

Emuge 3546L.04020A Dia 4mm SH 0.4724 LOC 1.1811 OAL4.7244 End Mill Taper Flute Carbide AlCrN Single End Ball NoseBall Turbine Program

Part Number: EMU3546L.04020A 0.157 x 0.472 x 1.181 x 4.724
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1236982
Vendor: Sussex Tool and Supply
$260.57

Description

EMUGE End Mill Carbide AlCrN Ball Nose Ball Taper Flute Flutes 3 Single End Turbine Program Carbide As the name suggests, Aluminum Chromium Nitride is a chromium-based coating that was developed in the early part of the 2000’s. Since then, it has been found to be an excellent choice for coating machining tools based on its superior performance in just about every category that matters. This is due in part to the way the chromium atoms interact with the aluminum in the substance, forming a tough layer that gets even stronger as you add more chromium to the mix. The result is a light, silver-grey substance that contains some remarkable properties.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Ball Taper Flute Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Taper/Straight Flute Taper Flute
Dimensions & Sizing
Overall Length 4.7244 120.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 3
Tool Dia 0.1575 4.00MM
Length Of Cut 1.1811 30.00MM
Geometry & Angles
Helix Angle 45
Taper Angle 4.0°
Performance & Capacity
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALCrN
