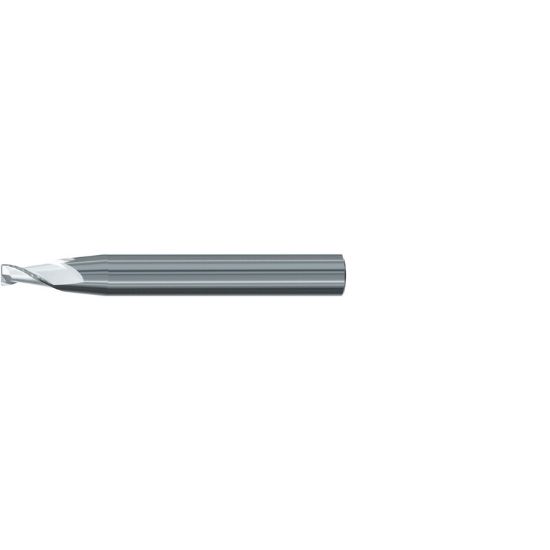

EMUGE 3445.03005A DIA 5MM SH 0.3150 LOC 0.3937 OAL2.4803 End Mill Taper Flute Carbide Uncoated Single End Corner Radius0.0197 0.50MM Turbine Program

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU3445.03005A
Delivery date: 3-5 days
$124.61
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#10, Material#6, Material#10I, Material#16, Material#9
Additional Key Information 3 Taper Flute
Application Copy Milling, Face Milling, Profile Milling, Taper Side Milling
Performance Rating High Performance
Additional Key Information 1 End Mill
Sold by Pieces 1
Shipping State Massachusetts
Additional Key Information 2 Corner Radius
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Cutter Dia 0.1968 5.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.3150 8.00MM
Length Of Cut 0.3937 10.00MM
Length Type Standard
Taper Flute Yes
Dimension Description 0.197 x 0.315 x 0.394 x 2.480
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 2.4803 63.00MM
Helix Angle 30°
End Of Tool Shape Corner Radius
Cutter Style Bull Taper Flute Finisher
Single/Double End Single End
Cut Rating <55HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel, Titanium
Machine Side CYLINDRICAL0.3150
Flutes/Inserts 2
Inch/Metric Metric
Corner Radius 0.0197 0.50MM
Taper Angle 3.0°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
