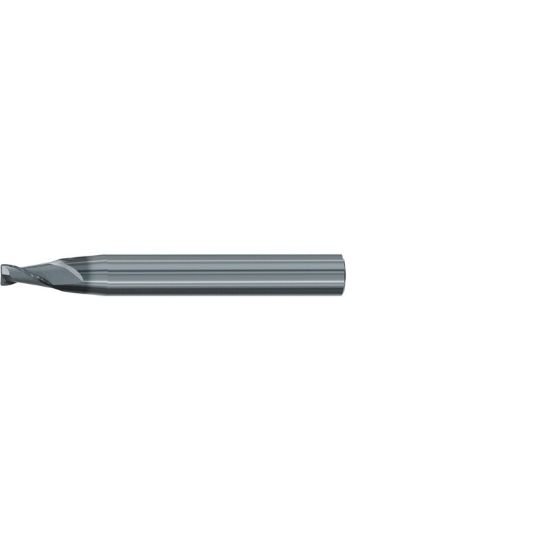

Emuge 3444L.08005A Dia 5mm SH 0.4724 LOC 0.3937 OAL3.2677 End Mill Taper Flute Carbide AlCrN Single End Corner Radius0.0197 0.50mm Turbine Program

Part Number: EMU3444L.08005A 0.197 x 0.472 x 0.394 x 3.268

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1237119
$170.52
EMUGE End Mill Carbide AlCrN Corner Radius 0.0197 0.50MM Taper Flute Flutes 2 Single End Turbine Program Carbide As the name suggests, Aluminum Chromium Nitride is a chromium-based coating that was developed in the early part of the 2000’s. Since then, it has been found to be an excellent choice for coating machining tools based on its superior performance in just about every category that matters. This is due in part to the way the chromium atoms interact with the aluminum in the substance, forming a tough layer that gets even stronger as you add more chromium to the mix. The result is a light, silver-grey substance that contains some remarkable properties.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, Ductile Iron, Gray Iron, <55HRC Steel, High Temp
Coating ALCrN
Mach Side Connection Size 0.4724 12.00MM
Overall Length 3.2677 83.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.1969 5.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.3937 10.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Bull Taper Flute Finisher
Single/Double End Single End
Corner Radius 0.0197 0.50MM
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
Taper/Straight Flute Taper Flute
Taper Angle 8.0°
