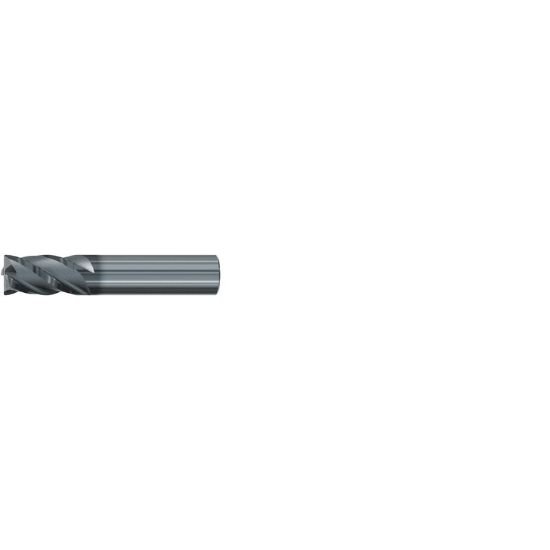

Emuge 2992L.00625 Dia 1/16 SH 0.1250 LOC 0.1250 OAL1.50 End Mill Standard Flute Variable Helix Carbide AlCrN Single End Square Sharp Top-Cut VAR

Part Number: EMU2992L.00625 0.063 x 0.125 x 0.125 x 1.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1236892
$36.51
EMUGE Variable Helix End Mill Carbide AlCrN Square Sharp Standard Flute Flutes 4 Single End Top-CUT VAR Carbide As the name suggests, Aluminum Chromium Nitride is a chromium-based coating that was developed in the early part of the 2000’s. Since then, it has been found to be an excellent choice for coating machining tools based on its superior performance in just about every category that matters. This is due in part to the way the chromium atoms interact with the aluminum in the substance, forming a tough layer that gets even stronger as you add more chromium to the mix. The result is a light, silver-grey substance that contains some remarkable properties.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Titanium, <42HRC Steel, High Temp, Inconel
Coating ALCrN
Mach Side Connection Size 0.1250 3.18MM
Overall Length 1.5000 38.10MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 4
Tool Dia 0.0625 1.59MM - 1/16
Length Type Stub
Performance Rating High Performance
Length Of Cut 0.1250 3.18MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
