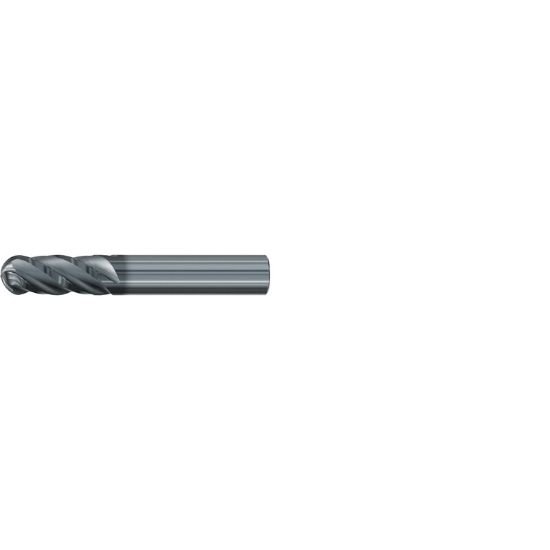

Picture of Emuge 2974L.0250 Dia 1/4 SH 0.2500 LOC 0.50 OAL 2.50 End Mill Variable Helix Carbide AlCrN Single End Ball NoseBall Top-Cut VAR

Emuge 2974L.0250 Dia 1/4 SH 0.2500 LOC 0.50 OAL 2.50 End Mill Variable Helix Carbide AlCrN Single End Ball NoseBall Top-Cut VAR

Part Number: EMU2974L.0250 0.250 x 0.250 x 0.500 x 2.500
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$47.01
SKU: 1236793

Description

EMUGE Variable Helix End Mill Carbide AlCrN Ball Nose 4 Flute Single End Top-Cut VAR
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 4
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Of Cut 0.5000 12.70MM
Geometry & Angles
Helix Angle Variable
Performance & Capacity
Cut Rating Stainless Steel, Titanium, <42HRC Steel, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALCrN
