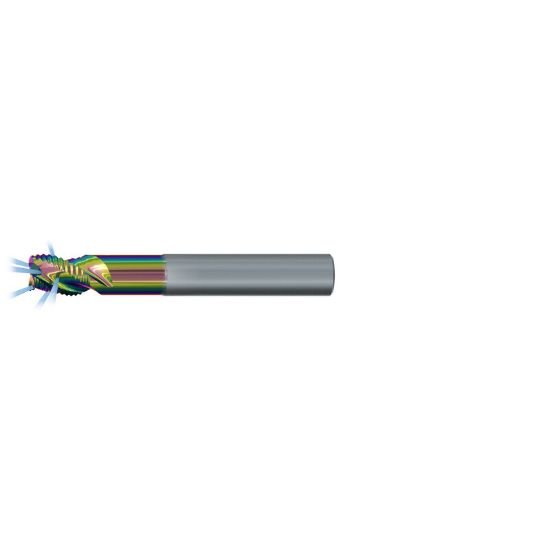

Picture of Emuge 2890RZ.012025 Dia 12mm SH 0.4724 LOC 0.5906 OAL3.2677 End Mill Standard Flute/With Coolant Variable Helix Carbide CrN Single End Corner Radius0.0984 2.50mm Alu-Cut

Emuge 2890RZ.012025 Dia 12mm SH 0.4724 LOC 0.5906 OAL3.2677 End Mill Standard Flute/With Coolant Variable Helix Carbide CrN Single End Corner Radius0.0984 2.50mm Alu-Cut

Part Number: EMU2890RZ.012025 0.472 x 0.472 x 0.591 x 3.268
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1235167
Vendor: Sussex Tool and Supply
$424.92

Description

EMUGE Variable Helix End Mill Carbide CrN Corner Radius 0.0984 2.50MM Standard Flute/With Coolant Flutes 3 Single End Alu-Cut Carbide CrN in forming applications, routinely provides 8x, or more, tool life, compared to uncoated tooling.  It also works better than thermal diffusion; eliminating the need for post-coat, heat treating.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Thru Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Coolant
Single/Double End Single End
Inch/Metric Metric
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 3.2677 83.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 3
Tool Dia 0.4724 12.00MM
Length Of Cut 0.5906 15.00MM
Neck Length 1.3780 35.00MM
Geometry & Angles
Corner Radius 0.0984 2.50MM
Helix Angle Variable
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating CrN
