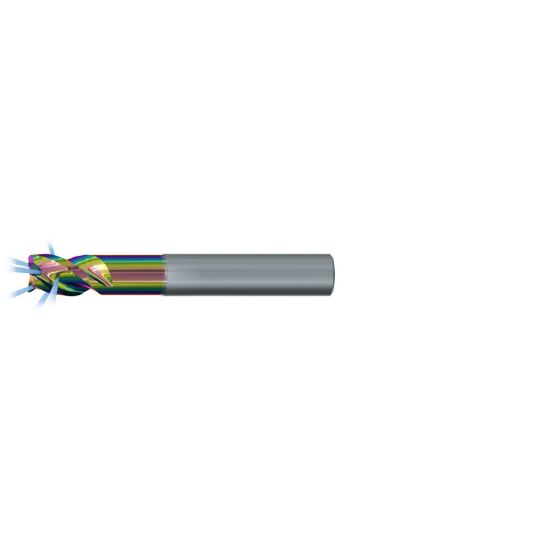

EMUGE 2889RZ.0500 DIA 1/2 SH 0.50 LOC 0.6250 OAL3.2500 End Mill Standard Flute Coolant Variable Helix Carbide CrN Single End Square Sharp Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2889RZ.0500
Delivery date: 3-5 days
$447.22
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

CrN in forming applications, routinely provides 8x, or more, tool life, compared to uncoated tooling.  It also works better than thermal diffusion; eliminating the need for post-coat, heat treating.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Shipping State Massachusetts
Material # Material#25, Material#20, Material#42
Additional Key Information 4 Variable Helix
Sold by Pieces 1
Additional Key Information 2 Sharp
Coating CrN
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute Coolant
Performance Rating High Performance
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Dimension Description 0.500 x 0.500 x 0.625 x 3.250
Machine Side Connection Size 0.5000 12.70MM
Overall Len 3.2500 82.55MM
Single/Double End Single End
Machine Side CYLINDRICAL0.5000
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Flutes/Inserts 3
End Of Tool Shape Square
Cutter Style Carbide Finisher Coolant
Length Of Cut 0.6250 15.88MM
Helix Angle 40°
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Center Cutting No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
