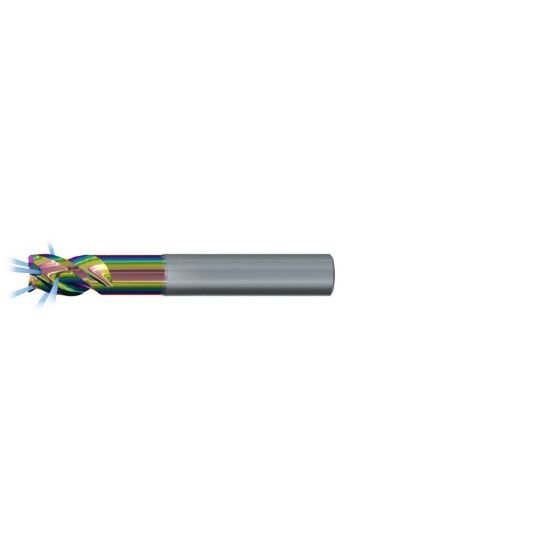

Picture of Emuge 2889RZ.0625 Dia 5/8 SH 0.6250 LOC 0.7500 OAL3.7500 End Mill Standard Flute Coolant Variable Helix Carbide CrN Single End Square Sharp Alu-Cut

Emuge 2889RZ.0625 Dia 5/8 SH 0.6250 LOC 0.7500 OAL3.7500 End Mill Standard Flute Coolant Variable Helix Carbide CrN Single End Square Sharp Alu-Cut

Part Number: EMU2889RZ.0625 0.625 x 0.625 x 0.750 x 3.750
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1234995
Vendor: Sussex Tool and Supply
$404.16

Description

EMUGE Variable Helix End Mill Carbide CrN Square Sharp Standard Flute Coolant Flutes 3 Single End Alu-Cut Carbide CrN in forming applications, routinely provides 8x, or more, tool life, compared to uncoated tooling.  It also works better than thermal diffusion; eliminating the need for post-coat, heat treating.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Thru Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style Carbide Finisher Coolant
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 3.7500 95.25MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Tool Dia 0.6250 15.88MM - 5/8
Length Of Cut 0.7500 19.05MM
Geometry & Angles
Helix Angle 40
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating CrN
