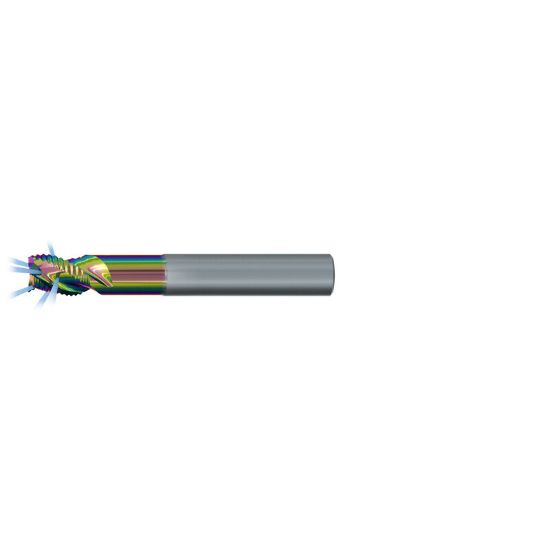

EMUGE 2888RZ.0375 DIA 3/8 SH 0.3750 LOC 0.4375 OAL2.7500 End Mill Carbide CrN Single End Square Sharp Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2888RZ.0375
Delivery date: 3-5 days
$384.25
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

CrN in forming applications, routinely provides 8x, or more, tool life, compared to uncoated tooling.  It also works better than thermal diffusion; eliminating the need for post-coat, heat treating.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Sold by Pieces 1
Additional Key Information 2 Rougher Coolant
Application Side Milling, Slot Milling, Face Milling
Coating CrN
Material # Material#20, Material#25, Material#42
Additional Key Information 1 End Mill
Performance Rating High Performance
Shipping State Massachusetts
Uncategorized
Made In USA No
Dimensional Specifications
Helix Angle 40°
Cutter Style Carbide Rougher Coolant
Dimension Description 0.375 x 0.375 x 0.438 x 2.750
Cutter Dia 0.3750 9.53MM - 3/8
Overall Len 2.7500 69.85MM
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Flutes/Inserts 3
End Of Tool Shape Square
Cut Rating Aluminum, Graphite, Plastic
Machine Side CYLINDRICAL0.3750
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.4375 11.11MM
Inch/Metric Inch
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Center Cutting No
Industry-Specific Applications
Job Shop Yes
