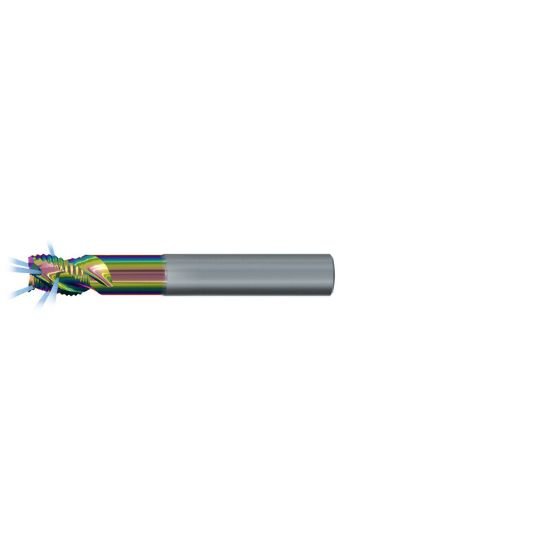

Picture of Emuge 2888RZ.03125 Dia 5/16 SH 0.3125 LOC 0.3906 OAL2.50 End Mill Carbide CrN Single End Square Sharp Alu-Cut

Emuge 2888RZ.03125 Dia 5/16 SH 0.3125 LOC 0.3906 OAL2.50 End Mill Carbide CrN Single End Square Sharp Alu-Cut

Part Number: EMU2888RZ.03125 0.313 x 0.313 x 0.391 x 2.500
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1235115
Vendor: Sussex Tool and Supply
$238.37

Description

EMUGE End Mill Carbide CrN Square Sharp Flutes 3 Single End Alu-Cut Carbide CrN in forming applications, routinely provides 8x, or more, tool life, compared to uncoated tooling.  It also works better than thermal diffusion; eliminating the need for post-coat, heat treating.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Thru Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style Carbide Rougher Coolant
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 3
Tool Dia 0.3125 7.94MM - 5/16
Length Of Cut 0.3906 9.92MM
Geometry & Angles
Helix Angle 40
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating CrN
