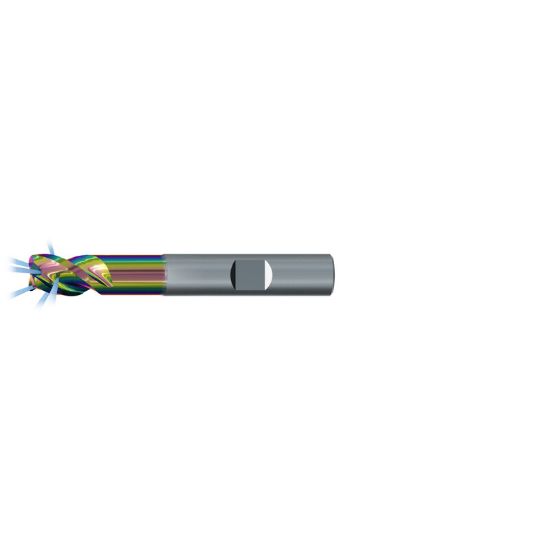

EMUGE 2884RZ.025030 DIA 25MM SH 0.9843 LOC 1.1811 OAL4.9213 End Mill Standard Flute/With Coolant Variable Helix Carbide CrN Single End Corner Radius0.1181 3.00MM Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2884RZ.025030
Delivery date: 3-5 days
$1,272.47
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

CrN in forming applications, routinely provides 8x, or more, tool life, compared to uncoated tooling.  It also works better than thermal diffusion; eliminating the need for post-coat, heat treating.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#20, Material#42, Material#25
Additional Key Information 1 End Mill
Application Slot Milling, Face Milling, Profile Milling, Copy Milling, Side Milling
Shipping State Massachusetts
Additional Key Information 2 Corner Radius
Package Size 1
Additional Key Information 3 Standard Flute/With Coolant
Performance Rating High Performance
Additional Key Information 4 Variable Helix
Sold by Pieces 1
Coating CrN
Uncategorized
Made In USA No
Dimensional Specifications
Dimension Description 0.984 x 0.984 x 1.181 x 4.921
Corner Radius 0.1181 3.00MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Cutter Dia 0.9844 25.00MM - 63/64
Neck Length 2.8740 73.00MM
Single/Double End Single End
Flutes/Inserts 4
Length Of Cut 1.1811 30.00MM
Cutter Style Carbide Bull Nose Coolant
Inch/Metric Metric
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 4.9213 125.00MM
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Length Type Standard / With Neck
Machine Side CYLINDRICAL0.9843
Cutting & Machining Properties
Center Cutting No
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
