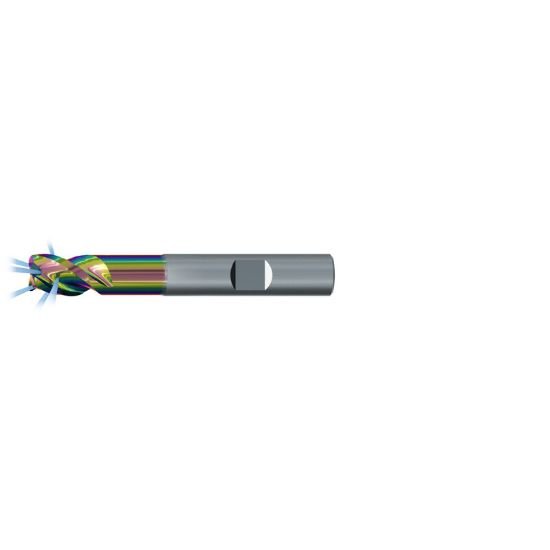

Picture of Emuge 2884RZ.012025 Dia 12mm SH 0.4724 LOC 0.5906 OAL3.2677 End Mill Standard Flute/With Coolant Variable Helix Carbide CrN Single End Corner Radius0.0984 2.50mm Alu-Cut

Emuge 2884RZ.012025 Dia 12mm SH 0.4724 LOC 0.5906 OAL3.2677 End Mill Standard Flute/With Coolant Variable Helix Carbide CrN Single End Corner Radius0.0984 2.50mm Alu-Cut

Part Number: EMU2884RZ.012025 0.472 x 0.472 x 0.591 x 3.268

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1235014
Vendor: Sussex Tool and Supply
$465.84
EMUGE Variable Helix End Mill Carbide CrN Corner Radius 0.0984 2.50MM Standard Flute/With Coolant Flutes 4 Single End Alu-Cut Carbide CrN in forming applications, routinely provides 8x, or more, tool life, compared to uncoated tooling.  It also works better than thermal diffusion; eliminating the need for post-coat, heat treating.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating CrN
Mach Side Connection Size 0.4724 12.00MM
Overall Length 3.2677 83.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 4
Tool Dia 0.4724 12.00MM
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.5906 15.00MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Coolant
Single/Double End Single End
Corner Radius 0.0984 2.50MM
Inch/Metric Metric
Helix Angle Variable
Center Cutting Non Center Cutting
Neck Length 1.3780 35.00MM
