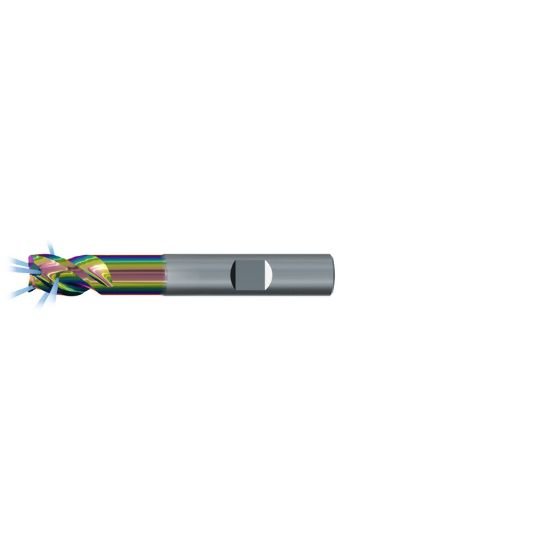

Picture of Emuge 2882RZ.020 Dia 20mm SH 0.7874 LOC 0.9843 OAL4.3307 End Mill Standard Flute Coolant Variable Helix Carbide CrN Single End 45.0° Chamfer Alu-Cut

Emuge 2882RZ.020 Dia 20mm SH 0.7874 LOC 0.9843 OAL4.3307 End Mill Standard Flute Coolant Variable Helix Carbide CrN Single End 45.0° Chamfer Alu-Cut

Part Number: EMU2882RZ.020 0.787 x 0.787 x 0.984 x 4.331
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1234968
Vendor: Sussex Tool and Supply
$408.33

Description

EMUGE Variable Helix End Mill Carbide CrN 45.0° Chamfer Chamfer Standard Flute Coolant Flutes 4 Single End Alu-Cut Carbide CrN in forming applications, routinely provides 8x, or more, tool life, compared to uncoated tooling.  It also works better than thermal diffusion; eliminating the need for post-coat, heat treating.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Thru Coolant
Length Type STANDARD
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher Coolant
Single/Double End Single End
Inch/Metric Metric
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 4.3307 110.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 4
Tool Dia 0.7874 20.00MM
Length Of Cut 0.9843 25.00MM
Neck Length 2.2835 58.00MM
Geometry & Angles
Helix Angle Variable
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating CrN
