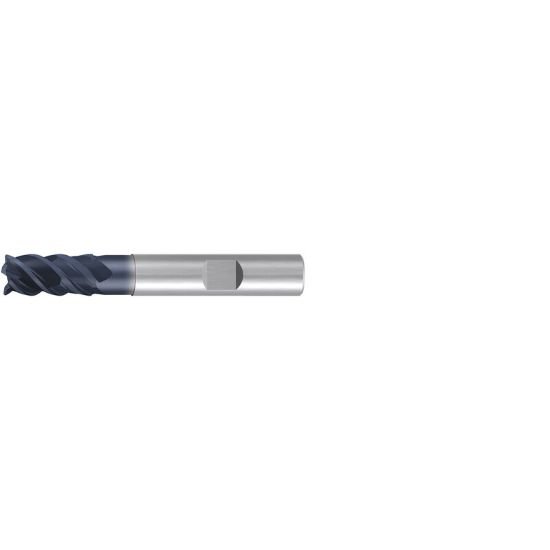

Picture of Emuge 2814A.0375 Dia 3/8 SH 0.3750 LOC 0.8750 OAL 2.50 End Mill High Helix Carbide TiAlN Single End Corner Radius0.0250 0.64mm Jet-Cut

Emuge 2814A.0375 Dia 3/8 SH 0.3750 LOC 0.8750 OAL 2.50 End Mill High Helix Carbide TiAlN Single End Corner Radius0.0250 0.64mm Jet-Cut

Part Number: EMU2814A.0375 0.375 x 0.375 x 0.875 x 2.500
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$196.71
SKU: 1235670

Description

EMUGE High Helix End Mill Carbide TiAlN Corner Radius 0.0250 0.64MM 4 Flute Single End Jet-Cut
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 4
Tool Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.8750 22.23MM
Geometry & Angles
Corner Radius 0.0250 0.64MM
Helix Angle 50
Performance & Capacity
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
