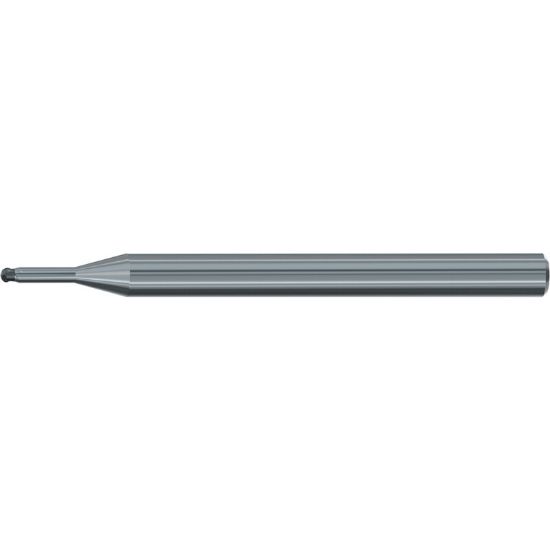

EMUGE 2620.2 DIA 2MM SH 0.2362 LOC 0.0512 OAL1.9685 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius0.0394 1.00MM Micro

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2620.200
Delivery date: 3-5 days
$836.49
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 2 Ball Nose
Additional Key Information 4 Standard Helix
Application Copy Milling, Ball Slot Milling, Profile Milling, Side Milling, Ball Milling
Performance Rating High Performance
Additional Key Information 3 Standard Flute
Shipping State Massachusetts
Package Size 1
Additional Key Information 1 End Mill
Sold by Pieces 1
Material # Material#7
Uncategorized
Made In USA No
Dimensional Specifications
Length Type Standard / With Neck
Cutter Style CBN Ball
Length Of Cut 0.0512 1.30MM
Neck Length 0.3543 9.00MM
Tool Material CBN
Helix Angle
Cutter Dia 0.0787 2.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Flutes/Inserts 2
Inch/Metric Metric
Dimension Description 0.079 x 0.236 x 0.051 x 1.969
Cut Rating >50HRC Steel
Corner Radius 0.0394 1.00MM
Machine Side CYLINDRICAL0.2362
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 1.9685 50.00MM
Machine Side Connection Size 0.2362 6.00MM
Cutting & Machining Properties
Cutting Edge Mat CBN
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
