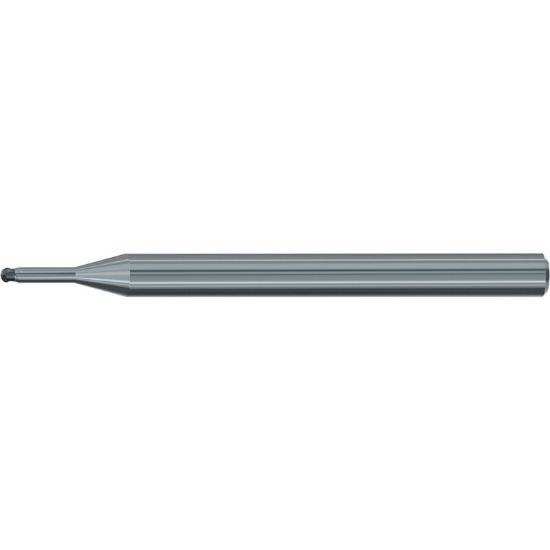

EMUGE 2620.05 DIA 0.50MM SH 0.1575 LOC 0.0138 OAL1.968 End Mill Standard Flute Standard Helix CBN Uncoated Single End Corner Radius0.0098 0.25MM Micro

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2620.050
Delivery date: 3-5 days
$756.66
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#7
Application Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling, Side Milling
Sold by Pieces 1
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Additional Key Information 2 Ball Nose
Additional Key Information 4 Standard Helix
Additional Key Information 3 Standard Flute
Additional Key Information 1 End Mill
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.1575 4.00MM
Machine Side Connection Type Cylindrical
Overall Len 1.9685 50.00MM
Length Of Cut 0.0138 0.35MM
Cutter Dia 0.0197 0.50MM
Neck Length 0.0886 2.25MM
Flutes/Inserts 2
Inch/Metric Metric
Length Type Standard / With Neck
Cutter Style CBN Ball
Shank/Pilot Dia 0.1574 4.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Corner Radius 0.0098 0.25MM
Cut Rating >50HRC Steel
Machine Side CYLINDRICAL0.1575
Dimension Description 0.020 x 0.157 x 0.014 x 1.969
Tool Material CBN
Helix Angle
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat CBN
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
