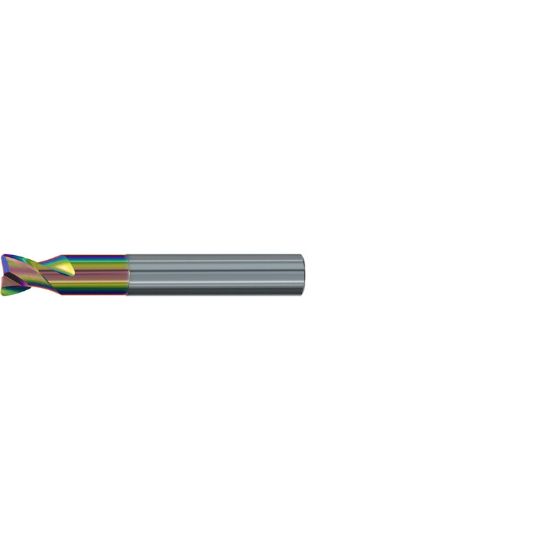

EMUGE 1942R.0500 1942R.0500 DIA 1/2 SH 0.50 LOC 0.3750 OAL3.2500 End Mill Torus Standard Helix Carbide CrN Single End Corner Radius0.0547 1.39MM Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU1942R.0500
Delivery date: 3-5 days
$333.05
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

CrN in forming applications, routinely provides 8x, or more, tool life, compared to uncoated tooling.  It also works better than thermal diffusion; eliminating the need for post-coat, heat treating.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#25, Material#20, Material#42
Sold by Pieces 1
Additional Key Information 1 End Mill
Application Side Milling, Copy Milling, Face Milling, Profile Milling, Slot Milling
Coating CrN
Additional Key Information 2 Corner Radius
Additional Key Information 4 Standard Helix
Additional Key Information 3 Torus
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side CYLINDRICAL0.5000
Helix Angle 30°
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.3750 9.53MM
Inch/Metric Inch
Flutes/Inserts 2
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutter Style Carbide Torus
Corner Radius 0.0547 1.39MM
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Dimension Description 0.500 x 0.500 x 0.375 x 3.250
Overall Len 3.2500 82.55MM
End Of Tool Shape Corner Radius
Length Type Stub
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Mold Yes
Job Shop Yes
