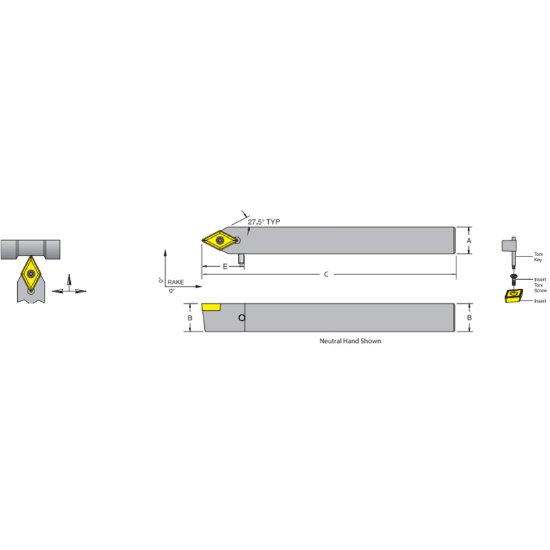

Picture of Dorian SDPCN10-3D 55.0° Swiss Square 0.629 Shank 6.000 OAL

Dorian SDPCN10-3D 55.0° Swiss Square 0.629 Shank 6.000 OAL

Part Number: DOR51945 ISO: SDPCN10-3D ANSI:SDPCN10-3D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1253354
Vendor: Sussex Tool and Supply
$98.07

Description

DORIAN 51945 55.0 ° Stick Tool0.6299 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Coolant Thru Non Coolant
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Positive
Hand Neutral
Inter/Extern External
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 11 "32"
Tool Over Hang 1.0000
Tool Width 0.6300
Geometry & Angles
Lead Angle 62.5°
Lead Angle & Clearance Angle Combined 62.5° Lead Angle 60.0° Clearance Angle, Swiss
Clearance Angle 60.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
