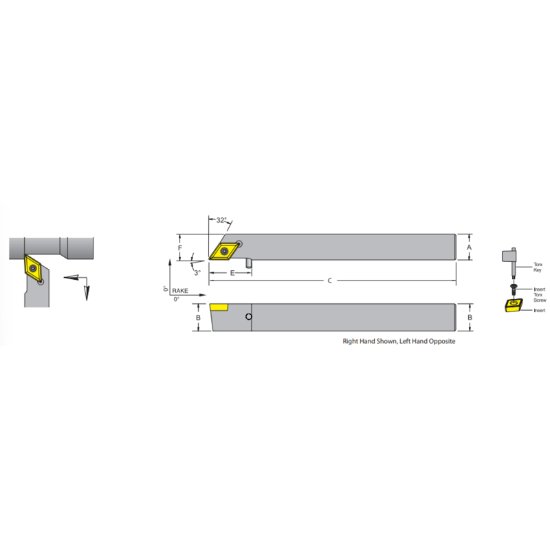

Picture of Dorian SDNCR10-3D 55.0° Swiss Square 0.625 Shank 6.000 OAL

Dorian SDNCR10-3D 55.0° Swiss Square 0.625 Shank 6.000 OAL

Part Number: DOR52256 ISO: SDNCR10-3D ANSI:SDNCR10-3D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1038011
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

DORIAN 52256 55.0 ° Stick Tool0.6250 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Coolant Thru Non Coolant
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Positive
Hand Right Hand
Inter/Extern External
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Insert Size Ic 11 "32"
Tool Over Hang 1.0000
Tool Width 0.6250
Geometry & Angles
Lead Angle 62.5°
Lead Angle & Clearance Angle Combined 62.5° Lead Angle 60.0° Clearance Angle, Swiss
Clearance Angle 60.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
