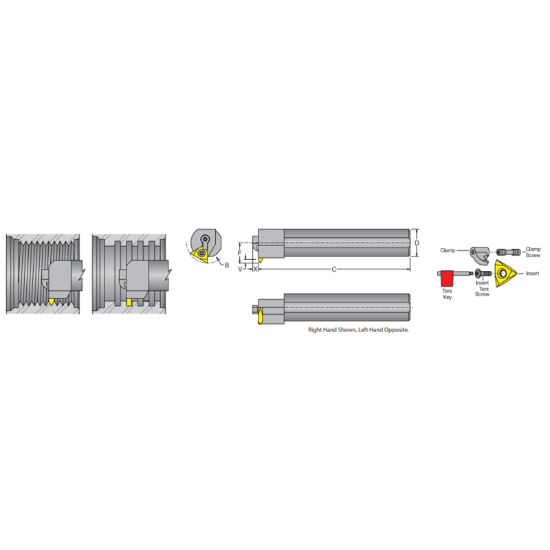

Picture of DORIAN S24U-MTHOR-4-C On Edge Boring Bar 1.500 Shank 14.00 OAL

DORIAN S24U-MTHOR-4-C On Edge Boring Bar 1.500 Shank 14.00 OAL

ANSI: S24U-MTHOR-4-C

ISO: S24U-MTHOR-4-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58312
Delivery date: 3-5 days
$422.14
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Type Positive
Package Size 1
Application Int.Groove Threading, Int.Threading
Insert/Tool Tool
Insert Application General Purpose
Additional Key Information 1 Boring Bar
Sold by Pieces 1
Additional Key Information 2 On Edge
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side Connection Size 1.5000 38.10MM
Min Bore 2.2500
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 4
Machine Side BBAR1.5000
Tool Material Steel
Machine Side Connection Type Boring Bar
Overall Len 14.0000 355.60MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ON EDGE
Inter/Extern Internal
Coolant Thru No
Hand R/L Right
Fasteners & Connectors
Insert Screw GTS-2
Clamp/Wedge CL-7
Clamp Screw XNS-36
