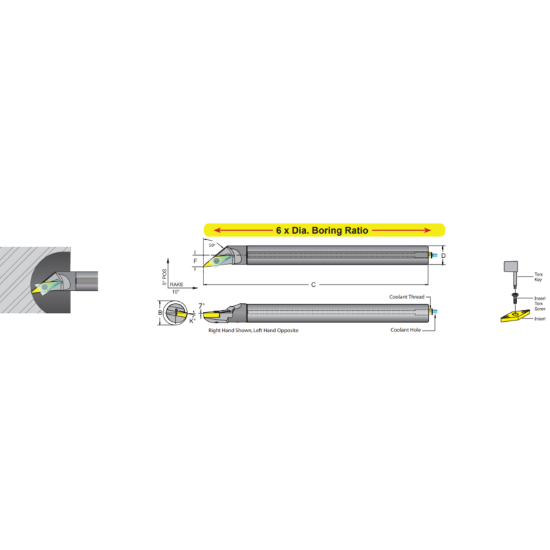

Picture of DORIAN E10S-SVMCL-2 Boring Bar 35.0° Carbide Round With One Flat 0.625 Shank 10.50 OAL

DORIAN E10S-SVMCL-2 Boring Bar 35.0° Carbide Round With One Flat 0.625 Shank 10.50 OAL

ANSI: E10S-SVMCL-2

ISO: E10S-SVMCL-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59816
Delivery date: 3-5 days
$441.55
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Int.Turning
Sold by Pieces 1
Insert Application General Purpose
Insert/Tool Tool
Additional Key Information 3 Carbide
Shipping State Texas
Additional Key Information 1 Boring Bar
Additional Key Information 2 35.0°
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Insert Size Ic 11
Machine Side Connection Size 0.6250 15.88MM
Lead Angle 50°
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 10.5000 266.70MM
Tool Material Carbide
Machine Side BBAR0.6250
Cutting & Machining Properties
Insert Style VC
Inter/Extern Internal
Hand R/L Left
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 35.0°
