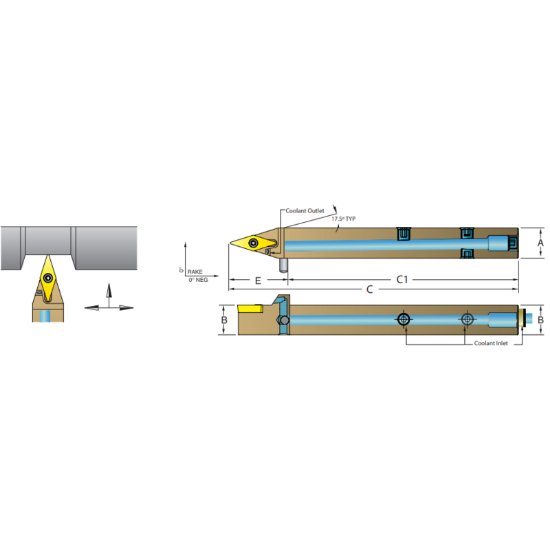

Picture of Dorian ASVVBN1010-H11 35.0° Swiss Square 0.393 Shank 3.940 OAL

Dorian ASVVBN1010-H11 35.0° Swiss Square 0.393 Shank 3.940 OAL

Part Number: DOR60893 ISO: ASVVBN1010-H11 ANSI:ASVVBN1010-H11
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1037977
Vendor: Sussex Tool and Supply
$120.60

Description

DORIAN 60893 35.0 ° Stick Tool0.3937 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Coolant Thru Thru Coolant
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VB
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Positive
Hand Neutral
Inter/Extern External
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 3.9400 100.08MM
Shank/Pilot Dia 0.3937 10.00MM
Insert Size Ic 11 "22"
Tool Over Hang 0.9840
Tool Width 0.3940
Geometry & Angles
Lead Angle 17.5°
Lead Angle & Clearance Angle Combined 17.5° Lead Angle, Swiss
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 35.0°
