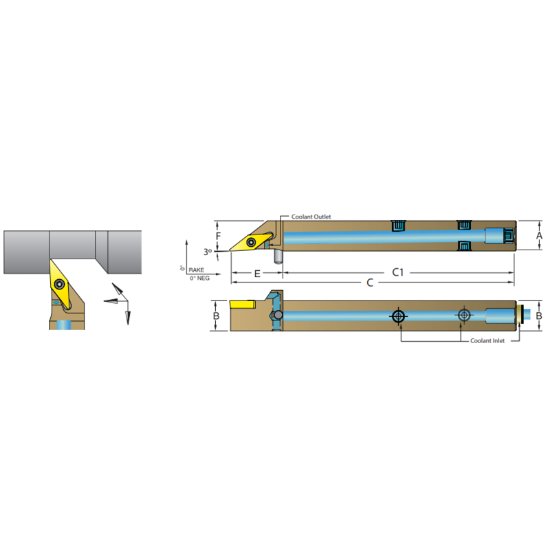

Picture of Dorian ASVNCR1616-H11 35.0° Swiss Square 0.629 Shank 3.940 OAL

Dorian ASVNCR1616-H11 35.0° Swiss Square 0.629 Shank 3.940 OAL

Part Number: DOR60918 ISO: ASVNCR1616-H11 ANSI:ASVNCR1616-H11
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1037959
Vendor: Sussex Tool and Supply
$133.96

Description

DORIAN 60918 35.0 ° Stick Tool0.6299 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Coolant Thru Thru Coolant
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VC
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Positive
Hand Right Hand
Inter/Extern External
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 3.9400 100.08MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 11 "21"
Tool Over Hang 0.9840
Tool Width 0.6300
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined Swiss, 93° Lead Angle 50.0° Clearance Angle
Clearance Angle 50.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 35.0°
