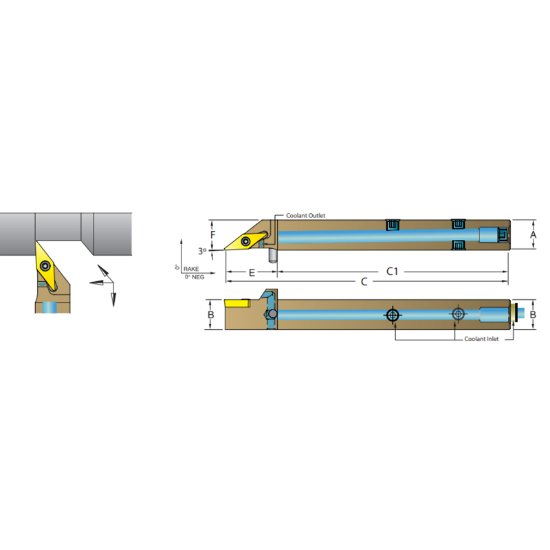

Picture of Dorian ASVNBL08-3A 35.0° Swiss Square 0.500 Shank 4.250 OAL

Dorian ASVNBL08-3A 35.0° Swiss Square 0.500 Shank 4.250 OAL

Part Number: DOR60730 ISO: ASVNBL08-3A ANSI:ASVNBL08-3A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: 1037931
Vendor: Sussex Tool and Supply
$154.31
DORIAN 60730 35.0 ° Stick Tool0.5000 Positive Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Tool Material Steel
Machine Side Connection Type Stick Tool
Mach Side Connection Size 0.5000 12.70MM
Overall Length 4.2500 107.95MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Type Of Tool Stick Tool
Insert/Tool TOOL
Insert Application General Purpose
Insert Style VB
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Positive
Insert Size Ic 16 "33"
Insert Fits 35.0°
Hand Left Hand
Inter/Extern External
Swiss/Multi Spindle SWISS
Tool Over Hang 1.2500
Lead Angle 93°
Lead Angle & Clearance Angle Combined Swiss, 93° Lead Angle 50.0° Clearance Angle
Tool Width 0.5000
Clearance Angle 50.0°
