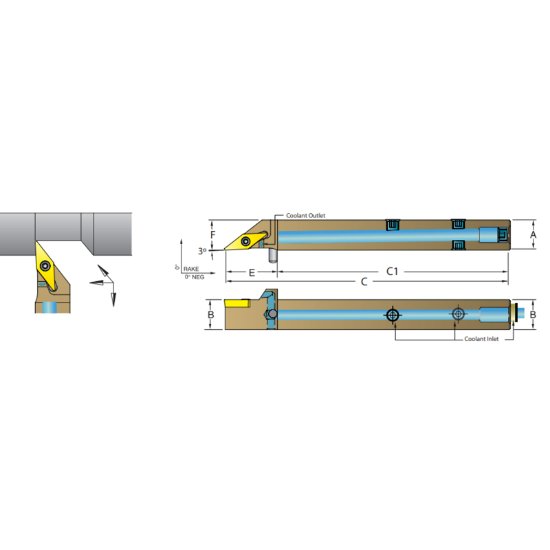

Picture of Dorian ASVNBL08-2A 35.0° Swiss Square 0.500 Shank 4.000 OAL

Dorian ASVNBL08-2A 35.0° Swiss Square 0.500 Shank 4.000 OAL

Part Number: DOR60728 ISO: ASVNBL08-2A ANSI:ASVNBL08-2A
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1037930
Vendor: Sussex Tool and Supply
$130.85

Description

DORIAN 60728 35.0 ° Stick Tool0.5000 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Coolant Thru Thru Coolant
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VB
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Positive
Hand Left Hand
Inter/Extern External
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Insert Size Ic 11 "22"
Tool Over Hang 1.0000
Tool Width 0.5000
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined Swiss, 93° Lead Angle 50.0° Clearance Angle
Clearance Angle 50.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 35.0°
