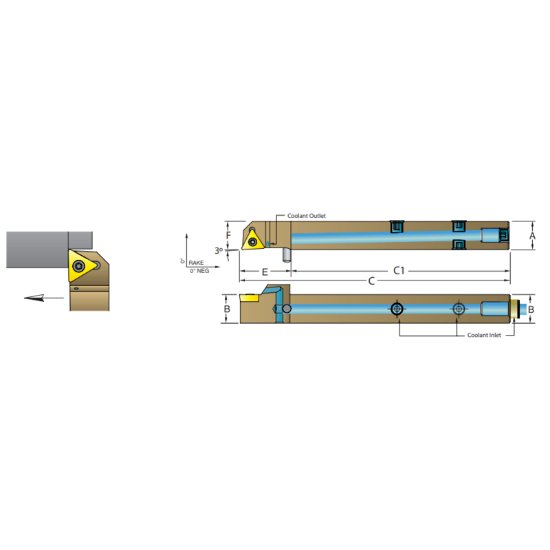

Picture of Dorian ASTNCL1616-H16 Triangle Swiss Square 0.629 Shank 3.940 OAL

Dorian ASTNCL1616-H16 Triangle Swiss Square 0.629 Shank 3.940 OAL

Part Number: DOR60865 ISO: ASTNCL1616-H16 ANSI:ASTNCL1616-H16
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1037901
Vendor: Sussex Tool and Supply
$133.96

Description

DORIAN 60865 Triangle Stick Tool0.6299 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Coolant Thru Thru Coolant
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style TC
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Hand Left Hand
Inter/Extern External
Swiss/Multi Spindle SWISS
Dimensions & Sizing
Overall Length 3.9400 100.08MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 16 "32"
Tool Over Hang 0.9840
Tool Width 0.6300
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle, Swiss
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Triangle
