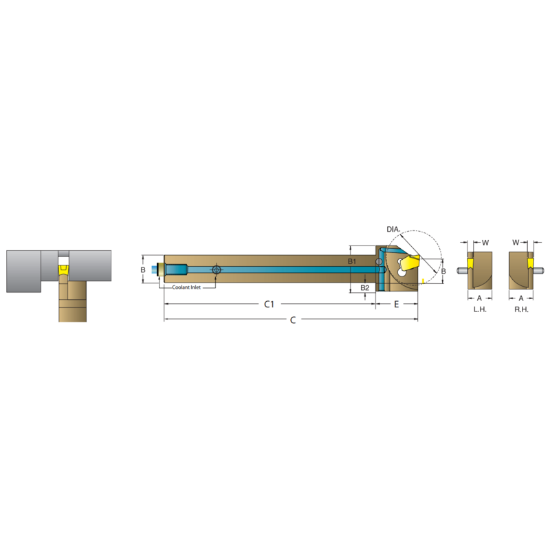

Picture of DORIAN ASGTHR2525-K03 Stick Tool Press In Square 0.984 Shank 5.200 OAL

DORIAN ASGTHR2525-K03 Stick Tool Press In Square 0.984 Shank 5.200 OAL

ANSI: ASGTHR2525-K03

ISO: ASGTHR2525-K03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR62940
Delivery date: 3-5 days
$238.26
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder single sided SGTN or GTN inserts

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Type Positive
Package Size 1
Additional Key Information 2 Stick Tool
Insert/Tool Tool
Additional Key Information 3 Press In
Application Ext.Grooving, Parting, Swiss
Insert Application General Purpose
Additional Key Information 4 Swiss
Sold by Pieces 1
Additional Key Information 1 Cut Off
Uncategorized
Made In USA No
Dimensional Specifications
Overall Len 5.2000 132.08MM
Tool Material Steel
Machine Side STICK TOOL0.9843
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Tool Over Hang 3.9370
Insert Size Ic 3
Shank/Pilot Dia 0.9843 25.00MM
Tool Width 0.9840
Cutting & Machining Properties
Inter/Extern External
Coolant Thru Yes
Insert Style SG
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
