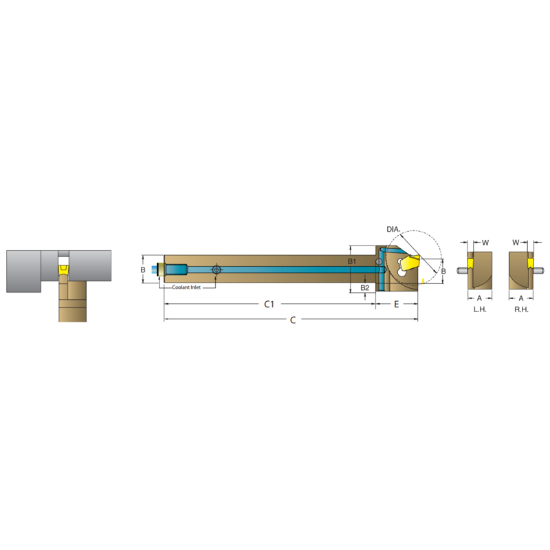

Picture of DORIAN ASGTHR16-3B Stick Tool Press In Square 1.000 Shank 5.000 OAL

DORIAN ASGTHR16-3B Stick Tool Press In Square 1.000 Shank 5.000 OAL

ANSI: ASGTHR16-3B

ISO: ASGTHR16-3B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR62948
Delivery date: 3-5 days
$238.26
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder single sided SGTN or GTN inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Additional Key Information 3 Press In
Application Ext.Grooving, Parting, Swiss
Sold by Pieces 1
Additional Key Information 1 Cut Off
Shipping State Texas
Insert Application General Purpose
Additional Key Information 4 Swiss
Package Size 1
Insert Type Positive
Additional Key Information 2 Stick Tool
Uncategorized
Made In USA No
Dimensional Specifications
Overall Len 5.0000 127.00MM
Machine Side Connection Size 1.0000 25.40MM
Tool Width 1.0000
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 3.9370
Insert Size Ic 3
Machine Side STICK TOOL1.0000
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Insert Style SG
Inter/Extern External
