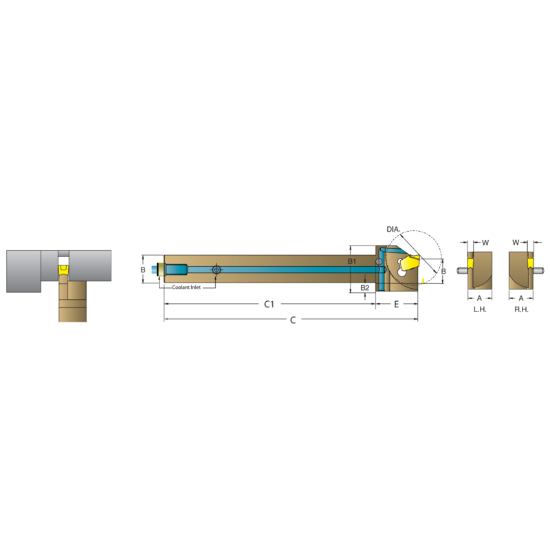

Picture of DORIAN ASGTHL2525-K03 Stick Tool Press In Square 0.984 Shank 5.200 OAL

DORIAN ASGTHL2525-K03 Stick Tool Press In Square 0.984 Shank 5.200 OAL

ANSI: ASGTHL2525-K03

ISO: ASGTHL2525-K03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR62941
Delivery date: 3-5 days
$238.26
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder single sided SGTN or GTN inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Additional Key Information 3 Press In
Application Ext.Grooving, Parting, Swiss
Insert Type Positive
Additional Key Information 2 Stick Tool
Package Size 1
Sold by Pieces 1
Additional Key Information 1 Cut Off
Shipping State Texas
Insert Application General Purpose
Additional Key Information 4 Swiss
Uncategorized
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 3.9370
Overall Len 5.2000 132.08MM
Insert Size Ic 3
Shank/Pilot Dia 0.9843 25.00MM
Tool Width 0.9840
Machine Side STICK TOOL0.9843
Machine Side Connection Size 0.9843 25.00MM
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Left
Insert Style SG
Inter/Extern External
Insert Shape/Cutter Pocket Shape Other
