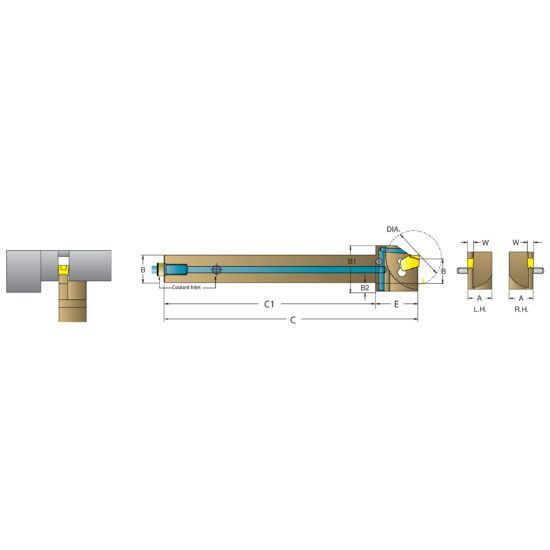

Picture of DORIAN ASGTHL16-2C Stick Tool Press In Square 1.000 Shank 5.000 OAL

DORIAN ASGTHL16-2C Stick Tool Press In Square 1.000 Shank 5.000 OAL

ANSI: ASGTHL16-2C

ISO: ASGTHL16-2C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR62945
Delivery date: 3-5 days
$238.26
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder single sided SGTN or GTN inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Additional Key Information 4 Swiss
Application Swiss, Ext.Grooving, Parting
Insert/Tool Tool
Additional Key Information 3 Press In
Insert Type Positive
Additional Key Information 2 Stick Tool
Sold by Pieces 1
Additional Key Information 1 Cut Off
Shipping State Texas
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Tool Over Hang 3.9370
Insert Size Ic 2
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side STICK TOOL1.0000
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 5.0000 127.00MM
Tool Width 1.0000
Cutting & Machining Properties
Coolant Thru Yes
Inter/Extern External
Hand R/L Left
Insert Shape/Cutter Pocket Shape Other
Insert Style SG
