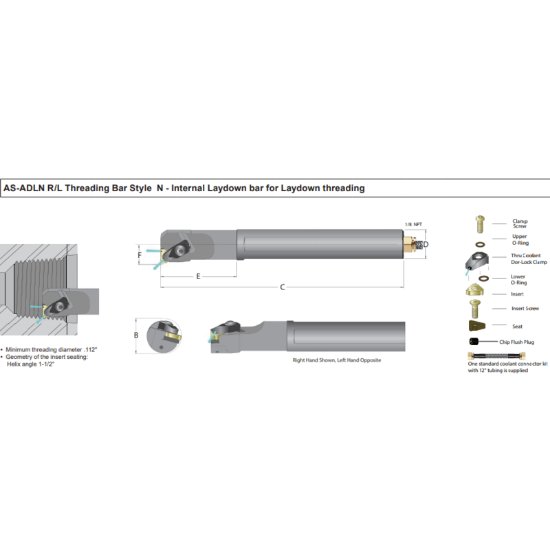

Picture of Dorian AS-24S-ADLNR-22 Iso Thread Boring Bar 1.500 Shank 10.00 OAL

Dorian AS-24S-ADLNR-22 Iso Thread Boring Bar 1.500 Shank 10.00 OAL

Part Number: DOR53543 ISO: AS-24S-ADLNR-22 ANSI:AS-24S-ADLNR-22
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1023396
Vendor: Sussex Tool and Supply
$308.11

Description

DORIAN 73310153543 Triangle Boring Bar Dia1.5000 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style ISO
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Hand Right Hand
Inter/Extern Internal
Insert Type/Oriantation ISO Thread
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HP22R-N
Seat/Nest NXE/I-22
Seat Screw TS-45.75-15M1
Dimensions & Sizing
Overall Length 10.0000 254.00MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 22
Performance & Capacity
Min Bore 2.0000
Materials & Finish
Tool Material Steel
