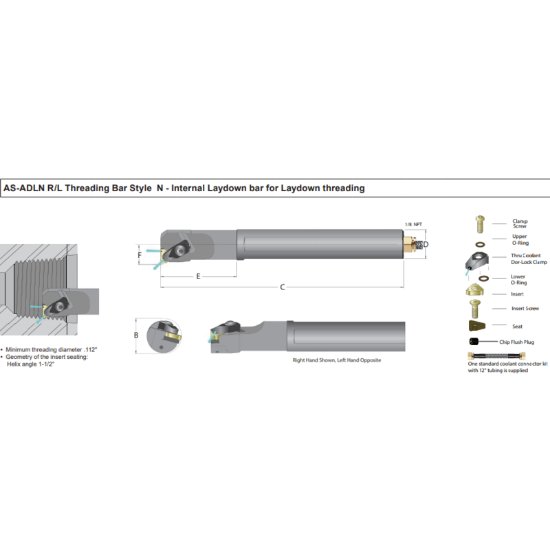

Picture of Dorian AS-24S-ADLNL-16 Iso Thread Boring Bar 1.500 Shank 10.00 OAL

Dorian AS-24S-ADLNL-16 Iso Thread Boring Bar 1.500 Shank 10.00 OAL

Part Number: DOR53540

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: 1023395
Vendor: Sussex Tool and Supply
$363.34
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Cutter Type Boring Bar
Made In USA No
Tool Material Steel
Machine Side (Toolpost) BBAR1.5000
Machine Side (Toolpost) Connection Type Boring Bar
Overall Length 10.0000 254.00MM
Shank Or Pilot Diameter 1.5000 38.10MM - 1-1/2
Coolant Thru Thru Coolant
Mach Side Connection Size 1.5000 38.10MM - 1-1/2
Type of Tool Boring Bar
Insert Or Tool Insert
Insert Application General Purpose
Insert Style ISO
Insert Shape Or Cutter Pocket Shape Triangle
Insert Type Positive
Insert Size (IC) 16
Hand Left Hand
Inter Or Extern Internal
Insert Type Or Orientation ISO Thread
Min Bore 1.8700
Clamp Screw JSCS-03
Clamp Or Wedge JSLC-HP16L-N
Seat Or Nest GXE/I-16
Seat Screw TS-35.6-14M1
