Picture of DORIAN AS-16R-ADNEL-3 Boring Bar Top Notch Type Boring Bar 1.000 Shank 8.000 OAL

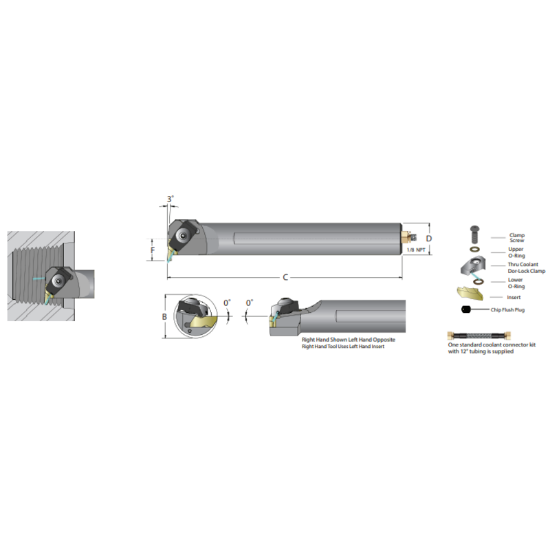

DORIAN AS-16R-ADNEL-3 Boring Bar Top Notch Type Boring Bar 1.000 Shank 8.000 OAL

ANSI: AS-16R-ADNEL-3

ISO: AS-16R-ADNEL-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53491
Delivery date: 3-5 days
$415.46
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Additional Key Information 1 Threading, Grooving
Insert Type Positive
Package Size 1
Application Int.Threading, Int.Grooving
Insert/Tool Tool
Additional Key Information 3 Top Notch
Additional Key Information 2 Boring Bar
Insert Application General Purpose
Shipping State Texas
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side BBAR1.0000
Overall Len 8.0000 203.20MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 3
Min Bore 1.3800
Tool Material Steel
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Style TOP NOTCH
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Top Notch
Coolant Thru Yes
Hand R/L Left
Fasteners & Connectors
Clamp/Wedge JSLC-HP72
Clamp Screw JSCS-08
