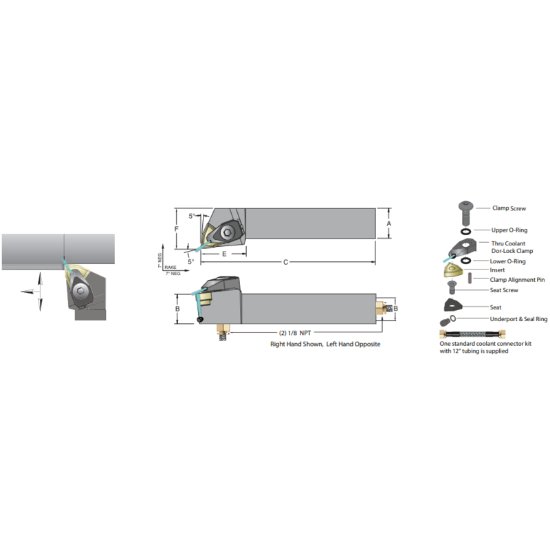

Picture of Dorian ADWLNR-24-4E Trigon Square 1.500 Shank 7.000 OAL

Dorian ADWLNR-24-4E Trigon Square 1.500 Shank 7.000 OAL

Part Number: DOR53103 ISO: ADWLNR-24-4E ANSI:ADWLNR-24-4E

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: 1038110
Vendor: Sussex Tool and Supply
$302.27
DORIAN 73310153103 80.0 ° Stick Tool1.5000 Negative Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Tool Material Steel
Machine Side Connection Type Stick Tool
Mach Side Connection Size 1.5000 38.10MM
Overall Length 7.0000 177.80MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Type Of Tool Stick Tool
Insert/Tool TOOL
Insert Application General Purpose
Insert Style WN
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Negative
Insert Size Ic 12 "43"
Insert Fits Trigon
Hand Right Hand
Inter/Extern External
Coolant Type Through
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
Insert Screw SM-S4
Tool Width 1.5000
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPTW4R/L
Seat Screw IWSN-433
