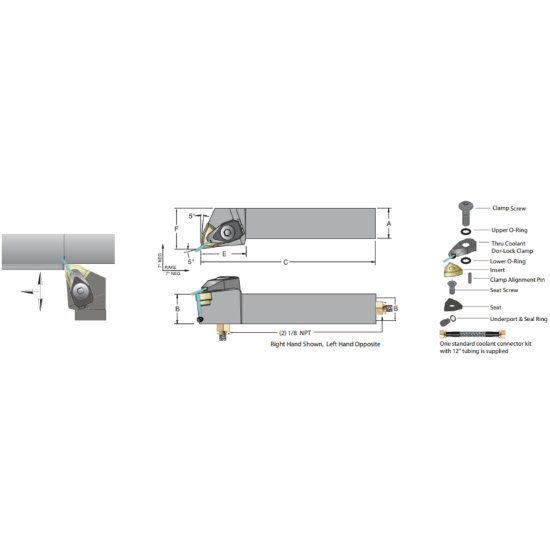

Picture of Dorian ADWLNL-12-3B Trigon Square 0.750 Shank 4.500 OAL

Dorian ADWLNL-12-3B Trigon Square 0.750 Shank 4.500 OAL

Part Number: DOR53094 ISO: ADWLNL-12-3B ANSI:ADWLNL-12-3B
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1038101
Vendor: Sussex Tool and Supply
$164.10

Description

DORIAN 73310153094 80.0 ° Stick Tool0.7500 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Coolant Thru Thru Coolant
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WN
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Negative
Hand Left Hand
Inter/Extern External
Coolant Type Through
Insert Screw SM-M4-245
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPTW3R/L
Seat Screw IWSN-322
Dimensions & Sizing
Overall Length 4.5000 114.30MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 06 "33"
Tool Width 0.7500
Geometry & Angles
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Trigon
