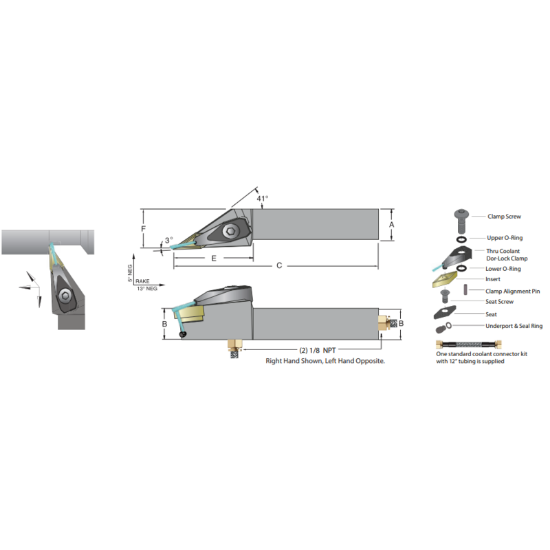

Picture of DORIAN ADVJNR-20-3D-001 35.0° Square 1.250 Shank 6.000 OAL

DORIAN ADVJNR-20-3D-001 35.0° Square 1.250 Shank 6.000 OAL

ANSI: ADVJNR-20-3D-001

ISO: ADVJNR-20-3D-001

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53085
Delivery date: 3-5 days
$254.34
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Details

Neg 35° JetStream ToolholderRH

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Sold by Pieces 1
Insert Type Negative
Additional Key Information 1 Stick Tool
Additional Key Information 2 35.0°
Application Ext.Turning
Package Size 1
Shipping State Texas
Uncategorized
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 16 "33"
Overall Len 6.0000 152.40MM
Machine Side STICK TOOL1.2500
Clearance Angle 44.0°
Lead Angle 93°
Tool Width 1.2500
Cutting & Machining Properties
Insert Style VN
Coolant Thru Yes
Cool Sply Type Through
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Right
Fasteners & Connectors
Seat Screw JV-322
Clamp/Wedge JSLC-HPV3
Clamp Screw JSCS-04
Insert Screw SM-M3
