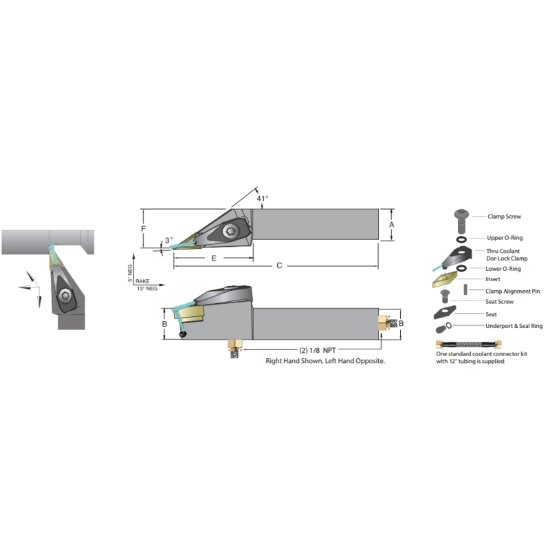

Picture of Dorian ADVJNL-24-3E 35.0° Square 1.500 Shank 7.000 OAL

Dorian ADVJNL-24-3E 35.0° Square 1.500 Shank 7.000 OAL

Part Number: DOR53088 ISO: ADVJNL-24-3E ANSI:ADVJNL-24-3E
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1038098
Vendor: Sussex Tool and Supply
$274.63

Description

DORIAN 73310153088 35.0 ° Stick Tool1.5000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Coolant Thru Thru Coolant
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VN
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Negative
Hand Left Hand
Inter/Extern External
Coolant Type Through
Insert Screw SM-M3
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPV3
Seat Screw JV-322
Dimensions & Sizing
Overall Length 7.0000 177.80MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 16 "33"
Tool Width 1.5000
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 44.0° Clearance Angle
Clearance Angle 44.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 35.0°
