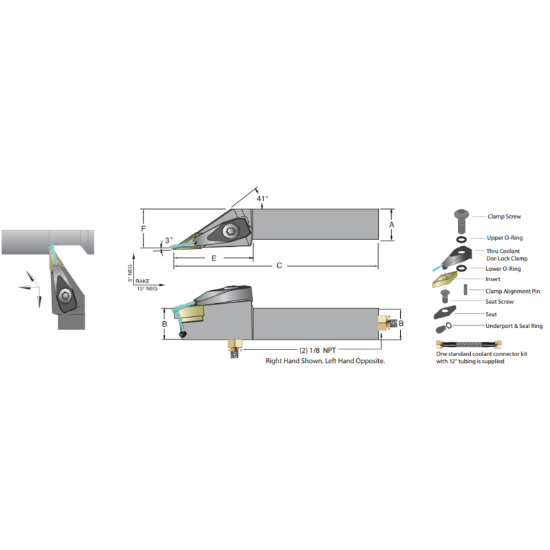

Picture of DORIAN ADVJNL-20-3D-001 35.0° Square 1.250 Shank 6.000 OAL

DORIAN ADVJNL-20-3D-001 35.0° Square 1.250 Shank 6.000 OAL

ANSI: ADVJNL-20-3D-001

ISO: ADVJNL-20-3D-001

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53086
Delivery date: 3-5 days
$254.34
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Details

Neg 35° JetStream ToolholderLH

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Shipping State Texas
Sold by Pieces 1
Additional Key Information 1 Stick Tool
Additional Key Information 2 35.0°
Uncategorized
Made In USA No
Dimensional Specifications
Clearance Angle 44.0°
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Machine Side STICK TOOL1.2500
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Lead Angle 93°
Tool Width 1.2500
Insert Size Ic 16 "33"
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Cool Sply Type Through
Inter/Extern External
Coolant Thru Yes
Insert Style VN
Hand R/L Left
Insert Shape/Cutter Pocket Shape 35.0°
Fasteners & Connectors
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPV3
Seat Screw JV-322
Insert Screw SM-M3
