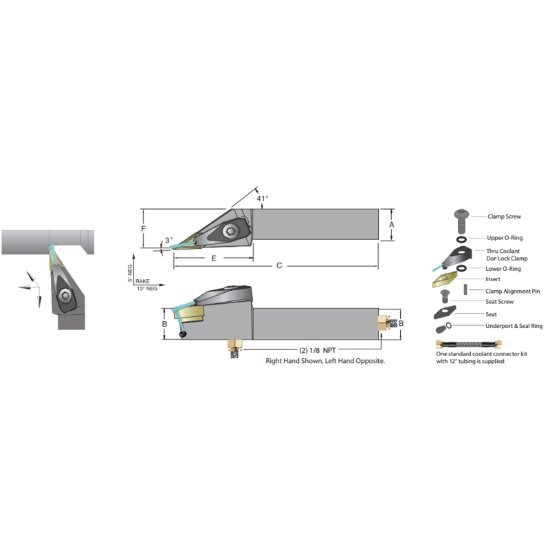

Picture of Dorian ADVJNL-20-3D-001 35.0° Square 1.250 Shank 6.000 OAL

Dorian ADVJNL-20-3D-001 35.0° Square 1.250 Shank 6.000 OAL

Part Number: DOR53086 ISO: ADVJNL-20-3D-001 ANSI:ADVJNL-20-3D-001
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1038097
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

DORIAN 73310153086 35.0 ° Stick Tool1.2500 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Coolant Thru Thru Coolant
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VN
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Negative
Hand Left Hand
Inter/Extern External
Coolant Type Through
Insert Screw SM-M3
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPV3
Seat Screw JV-322
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 16 "33"
Tool Width 1.2500
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 44.0° Clearance Angle
Clearance Angle 44.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 35.0°
