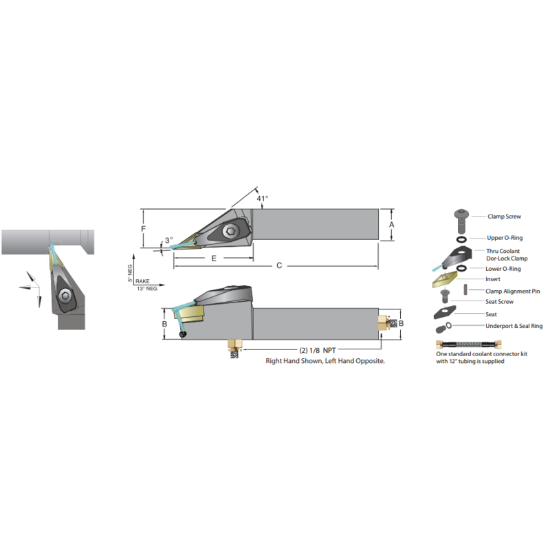

Picture of DORIAN ADVJNL-12-3B 35.0° Square 0.750 Shank 4.500 OAL

DORIAN ADVJNL-12-3B 35.0° Square 0.750 Shank 4.500 OAL

ANSI: ADVJNL-12-3B

ISO: ADVJNL-12-3B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR53082
Delivery date: 3-5 days
$223.25
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Details

Neg 35° JetStream ToolholderLH

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Additional Key Information 1 Stick Tool
Additional Key Information 2 35.0°
Shipping State Texas
Sold by Pieces 1
Insert Application General Purpose
Insert Type Negative
Uncategorized
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Lead Angle 93°
Machine Side STICK TOOL0.7500
Overall Len 4.5000 114.30MM
Insert Size Ic 16 "33"
Clearance Angle 44.0°
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Coolant Thru Yes
Inter/Extern External
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VN
Hand R/L Left
Cool Sply Type Through
Fasteners & Connectors
Seat Screw JV-322
Clamp/Wedge JSLC-HPV3
Insert Screw SM-M3
Clamp Screw JSCS-04
