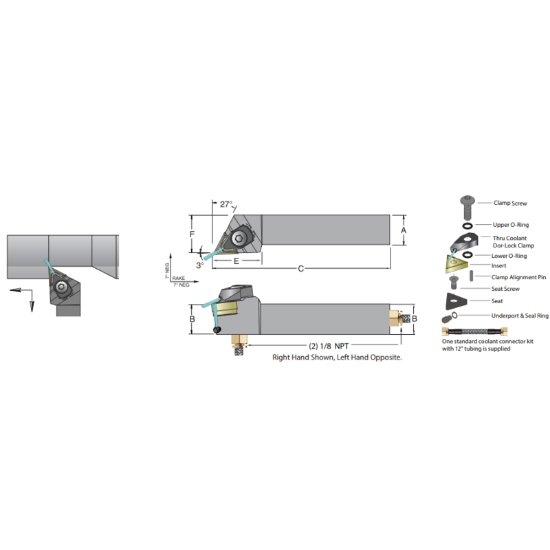

Picture of Dorian ADTJNR-20-4D Triangle Square 1.250 Shank 6.000 OAL

Dorian ADTJNR-20-4D Triangle Square 1.250 Shank 6.000 OAL

Part Number: DOR53071 ISO: ADTJNR-20-4D ANSI:ADTJNR-20-4D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1038089
Vendor: Sussex Tool and Supply
$201.30

Description

DORIAN 73310153071 Triangle Stick Tool1.2500 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Coolant Thru Thru Coolant
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style TN
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Negative
Hand Right Hand
Inter/Extern External
Coolant Type Through
Insert Screw SM-S4
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPCTW-4N
Seat Screw JT-433
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 22 "43"
Tool Width 1.2500
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 22.0° Clearance Angle
Clearance Angle 22.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Triangle
