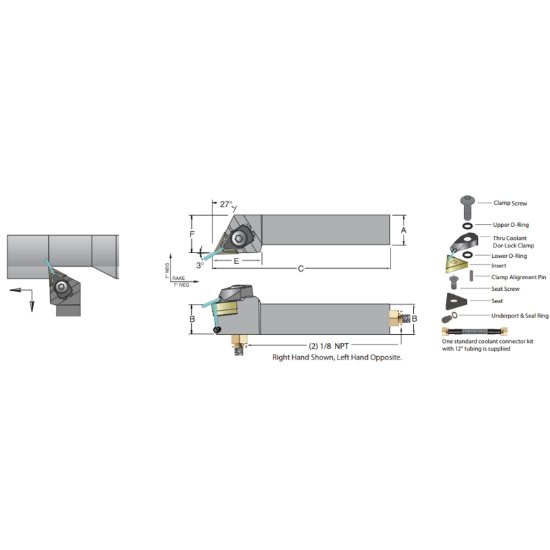

Picture of Dorian ADTJNR-16-4D Triangle Square 1.000 Shank 6.000 OAL

Dorian ADTJNR-16-4D Triangle Square 1.000 Shank 6.000 OAL

Part Number: DOR53069 ISO: ADTJNR-16-4D ANSI:ADTJNR-16-4D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: 1038087
Vendor: Sussex Tool and Supply
$223.37
DORIAN 73310153069 Triangle Stick Tool1.0000 Negative Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Tool Material Steel
Machine Side Connection Type Stick Tool
Mach Side Connection Size 1.0000 25.40MM
Overall Length 6.0000 152.40MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Type Of Tool Stick Tool
Insert/Tool TOOL
Insert Application General Purpose
Insert Style TN
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Negative
Insert Size Ic 22 "43"
Insert Fits Triangle
Hand Right Hand
Inter/Extern External
Coolant Type Through
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 22.0° Clearance Angle
Insert Screw SM-S4
Tool Width 1.0000
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPCTW-4N
Clearance Angle 22.0°
Seat Screw JT-433
