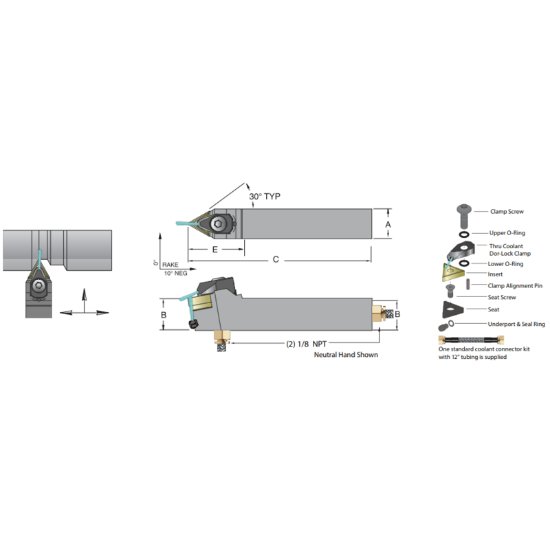

Picture of Dorian ADTENN-24-4E Triangle Square 1.500 Shank 7.000 OAL

Dorian ADTENN-24-4E Triangle Square 1.500 Shank 7.000 OAL

Part Number: DOR53080 ISO: ADTENN-24-4E ANSI:ADTENN-24-4E
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1038079
Vendor: Sussex Tool and Supply
$256.33

Description

DORIAN 73310153080 Triangle Stick Tool1.5000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Coolant Thru Thru Coolant
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style TN
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Negative
Hand Neutral
Inter/Extern External
Coolant Type Through
Insert Screw SM-S4
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPCTW-4N
Seat Screw JT-433
Dimensions & Sizing
Overall Length 7.0000 177.80MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 22 "43"
Tool Width 1.5000
Geometry & Angles
Lead Angle 30°
Lead Angle & Clearance Angle Combined 30° Lead Angle
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Triangle
