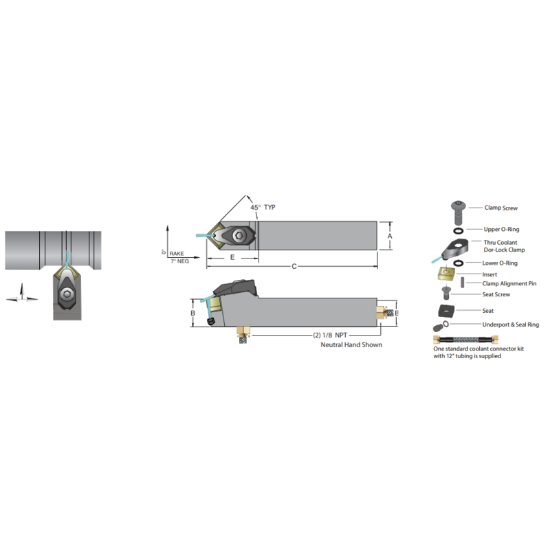

Picture of Dorian ADSDNN-24-5E Square Square 1.500 Shank 7.000 OAL

Dorian ADSDNN-24-5E Square Square 1.500 Shank 7.000 OAL

Part Number: DOR53058 ISO: ADSDNN-24-5E ANSI:ADSDNN-24-5E
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1038065
Vendor: Sussex Tool and Supply
$213.16

Description

DORIAN 73310153058 Square Stick Tool1.5000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Coolant Thru Thru Coolant
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style CN
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Hand Neutral
Inter/Extern External
Coolant Type Through
Insert Screw SM-M6
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPC5
Seat Screw JS-533
Dimensions & Sizing
Overall Length 7.0000 177.80MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 16 "54"
Tool Width 1.5000
Geometry & Angles
Lead Angle 45°
Lead Angle & Clearance Angle Combined 45° Lead Angle 40.0° Clearance Angle
Clearance Angle 40.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Square
