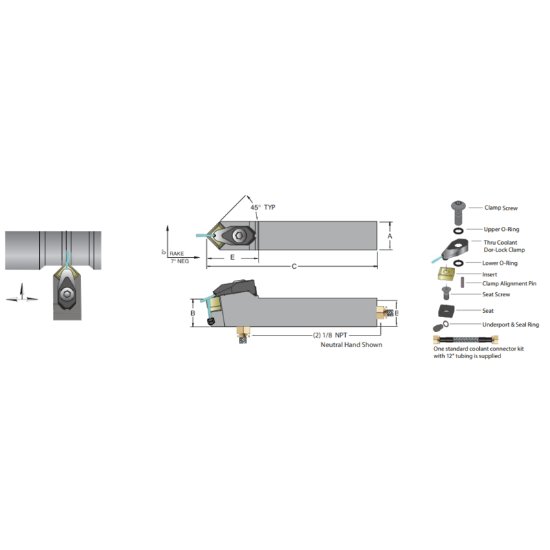

Picture of Dorian ADSDNN-16-4D Square Square 1.000 Shank 6.000 OAL

Dorian ADSDNN-16-4D Square Square 1.000 Shank 6.000 OAL

Part Number: DOR53054 ISO: ADSDNN-16-4D ANSI:ADSDNN-16-4D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1038062
Vendor: Sussex Tool and Supply
$193.90

Description

DORIAN 73310153054 Square Stick Tool1.0000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Coolant Thru Thru Coolant
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Insert Type Negative
Hand Neutral
Inter/Extern External
Coolant Type Through
Insert Screw SM-S4
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPCTW-4N
Seat Screw JS-432
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 12 "43"
Tool Width 1.0000
Geometry & Angles
Lead Angle 45°
Lead Angle & Clearance Angle Combined 45° Lead Angle 40.0° Clearance Angle
Clearance Angle 40.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits Square
