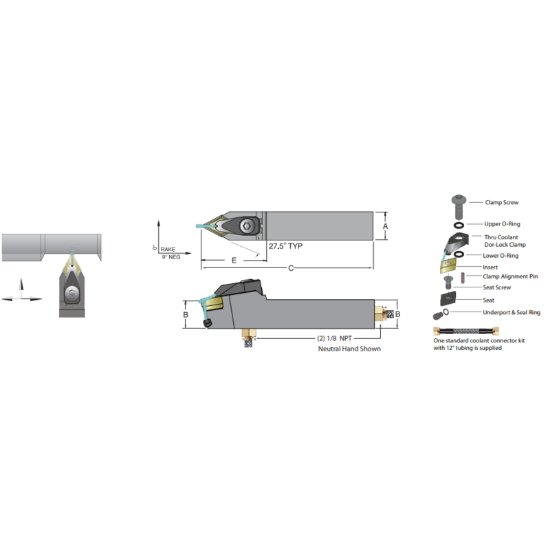

Picture of Dorian ADDPNN-24-4E 55.0° Square 1.500 Shank 7.000 OAL

Dorian ADDPNN-24-4E 55.0° Square 1.500 Shank 7.000 OAL

Part Number: DOR53035 ISO: ADDPNN-24-4E ANSI:ADDPNN-24-4E
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1038060
Vendor: Sussex Tool and Supply
$274.63

Description

DORIAN 73310153035 55.0 ° Stick Tool1.5000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Coolant Thru Thru Coolant
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Hand Neutral
Inter/Extern External
Coolant Type Through
Insert Screw SM-S4
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPD4
Seat Screw JD-432
Dimensions & Sizing
Overall Length 7.0000 177.80MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 12 "43"
Tool Width 1.5000
Geometry & Angles
Lead Angle 62.5°
Lead Angle & Clearance Angle Combined 62.5° Lead Angle 57.0° Clearance Angle
Clearance Angle 57.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
