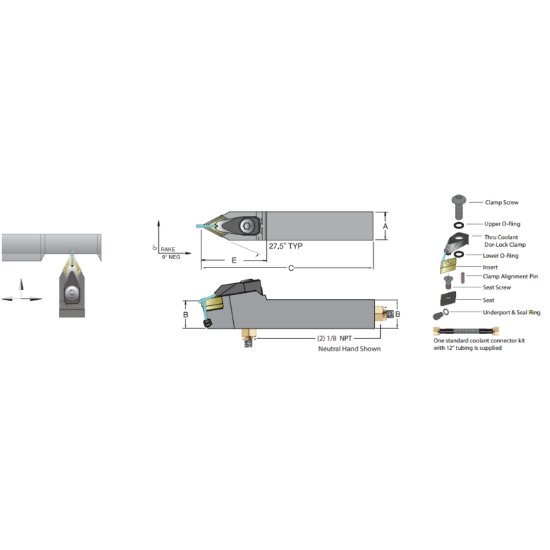

Picture of Dorian ADDPNN-16-3D 55.0° Square 1.000 Shank 6.000 OAL

Dorian ADDPNN-16-3D 55.0° Square 1.000 Shank 6.000 OAL

Part Number: DOR53032 ISO: ADDPNN-16-3D ANSI:ADDPNN-16-3D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1038057
Vendor: Sussex Tool and Supply
$202.93

Description

DORIAN 73310153032 55.0 ° Stick Tool1.0000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Coolant Thru Thru Coolant
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Hand Neutral
Inter/Extern External
Coolant Type Through
Insert Screw SM-M4-245
Clamp Screw JSCS-04
Clamp/Wedge JSLC-HPD3
Seat Screw IDSN-322
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 11 "33"
Tool Width 1.0000
Geometry & Angles
Lead Angle 62.5°
Lead Angle & Clearance Angle Combined 62.5° Lead Angle 57.0° Clearance Angle
Clearance Angle 57.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
